Base class settings to construct a compound shape. More...

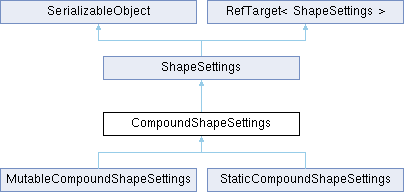

Inheritance diagram for CompoundShapeSettings:

Classes
struct	SubShapeSettings

Public Types
using	SubShapes = Array<SubShapeSettings>
Public Types inherited from ShapeSettings
using	ShapeResult = Result<Ref<Shape>>

Public Member Functions
	CompoundShapeSettings ()=default
	Constructor. Use AddShape to add the parts.
void	AddShape (Vec3Arg inPosition, QuatArg inRotation, const ShapeSettings *inShape, uint32 inUserData=0)
	Add a shape to the compound.
void	AddShape (Vec3Arg inPosition, QuatArg inRotation, const Shape *inShape, uint32 inUserData=0)
	Add a shape to the compound. Variant that uses a concrete shape, which means this object cannot be serialized.
Public Member Functions inherited from ShapeSettings
virtual ShapeResult	Create () const =0
	Create a shape according to the settings specified by this object.
void	ClearCachedResult ()
Public Member Functions inherited from SerializableObject
virtual	~SerializableObject ()=default
	Destructor.
Public Member Functions inherited from RefTarget< ShapeSettings >
	RefTarget ()=default
	Constructor.
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const

Public Attributes
SubShapes	mSubShapes
Public Attributes inherited from ShapeSettings
uint64	mUserData = 0
	User data (to be used freely by the application).

Additional Inherited Members
Static Public Member Functions inherited from RefTarget< ShapeSettings >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.
Protected Member Functions inherited from SerializableObject
	SerializableObject ()=default
	Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.
	SerializableObject (const SerializableObject &)=default
SerializableObject &	operator= (const SerializableObject &)=default
Protected Attributes inherited from ShapeSettings
ShapeResult	mCachedResult
Protected Attributes inherited from RefTarget< ShapeSettings >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< ShapeSettings >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

Base class settings to construct a compound shape.

Member Typedef Documentation

CompoundShapeSettings::CompoundShapeSettings ( )

default

Constructor. Use AddShape to add the parts.

void CompoundShapeSettings::AddShape	(	Vec3Arg	inPosition,
		QuatArg	inRotation,
		const Shape *	inShape,
		uint32	inUserData = 0 )

Add a shape to the compound. Variant that uses a concrete shape, which means this object cannot be serialized.

void CompoundShapeSettings::AddShape	(	Vec3Arg	inPosition,
		QuatArg	inRotation,
		const ShapeSettings *	inShape,
		uint32	inUserData = 0 )

Add a shape to the compound.

SubShapes CompoundShapeSettings::mSubShapes

The documentation for this class was generated from the following files:
