ConstraintSettings Class Reference

Class used to store the configuration of a constraint. Allows run-time creation of constraints. More...

#include <Constraint.h>

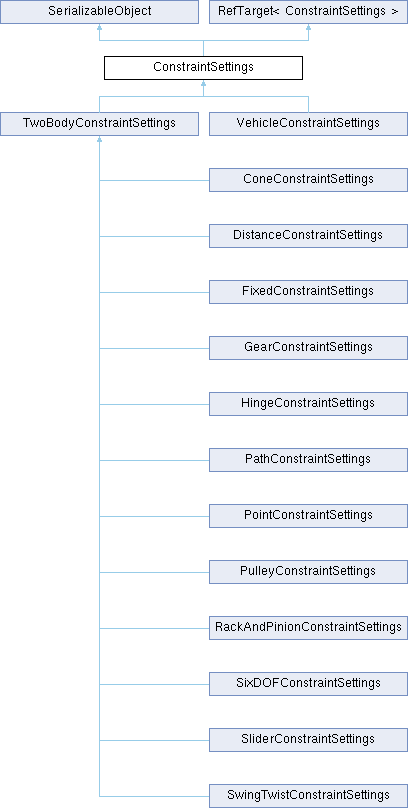

Inheritance diagram for ConstraintSettings:

Public Types
using	ConstraintResult = Result<Ref<ConstraintSettings>>

Public Member Functions
virtual void	SaveBinaryState (StreamOut &inStream) const
	Saves the contents of the constraint settings in binary form to inStream.
Public Member Functions inherited from SerializableObject
virtual	~SerializableObject ()=default
	Destructor.
Public Member Functions inherited from RefTarget< ConstraintSettings >
	RefTarget ()=default
	Constructor.
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const

Static Public Member Functions
static ConstraintResult	sRestoreFromBinaryState (StreamIn &inStream)
	Creates a constraint of the correct type and restores its contents from the binary stream inStream.
Static Public Member Functions inherited from RefTarget< ConstraintSettings >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.

Public Attributes
bool	mEnabled = true
	If this constraint is enabled initially. Use Constraint::SetEnabled to toggle after creation.
uint32	mConstraintPriority = 0
uint	mNumVelocityStepsOverride = 0
	Used only when the constraint is active. Override for the number of solver velocity iterations to run, 0 means use the default in PhysicsSettings::mNumVelocitySteps. The number of iterations to use is the max of all contacts and constraints in the island.
uint	mNumPositionStepsOverride = 0
	Used only when the constraint is active. Override for the number of solver position iterations to run, 0 means use the default in PhysicsSettings::mNumPositionSteps. The number of iterations to use is the max of all contacts and constraints in the island.
float	mDrawConstraintSize = 1.0f
	Size of constraint when drawing it through the debug renderer.
uint64	mUserData = 0
	User data value (can be used by application).

Protected Member Functions
	ConstraintSettings ()=default
	Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.
	ConstraintSettings (const ConstraintSettings &)=default
ConstraintSettings &	operator= (const ConstraintSettings &)=default
virtual void	RestoreBinaryState (StreamIn &inStream)
	This function should not be called directly, it is used by sRestoreFromBinaryState.
Protected Member Functions inherited from SerializableObject
	SerializableObject ()=default
	Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.
	SerializableObject (const SerializableObject &)=default
SerializableObject &	operator= (const SerializableObject &)=default

Additional Inherited Members
Protected Attributes inherited from RefTarget< ConstraintSettings >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< ConstraintSettings >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

Class used to store the configuration of a constraint. Allows run-time creation of constraints.

Member Typedef Documentation

ConstraintResult

using ConstraintSettings::ConstraintResult = Result<Ref<ConstraintSettings>>

Constructor & Destructor Documentation

ConstraintSettings() [1/2]

ConstraintSettings::ConstraintSettings ( )

protecteddefault

Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.

ConstraintSettings() [2/2]

ConstraintSettings::ConstraintSettings ( const ConstraintSettings & )

protecteddefault

Member Function Documentation

operator=()

ConstraintSettings & ConstraintSettings::operator= ( const ConstraintSettings & )

protecteddefault

RestoreBinaryState()

void ConstraintSettings::RestoreBinaryState ( StreamIn & inStream )

protectedvirtual

This function should not be called directly, it is used by sRestoreFromBinaryState.

Reimplemented in ConeConstraintSettings, DistanceConstraintSettings, FixedConstraintSettings, GearConstraintSettings, HingeConstraintSettings, PathConstraintSettings, PointConstraintSettings, PulleyConstraintSettings, RackAndPinionConstraintSettings, SixDOFConstraintSettings, SliderConstraintSettings, SwingTwistConstraintSettings, and VehicleConstraintSettings.

SaveBinaryState()

void ConstraintSettings::SaveBinaryState ( StreamOut & inStream ) const

virtual

Saves the contents of the constraint settings in binary form to inStream.

Reimplemented in ConeConstraintSettings, DistanceConstraintSettings, FixedConstraintSettings, GearConstraintSettings, HingeConstraintSettings, PathConstraintSettings, PointConstraintSettings, PulleyConstraintSettings, RackAndPinionConstraintSettings, SixDOFConstraintSettings, SliderConstraintSettings, SwingTwistConstraintSettings, and VehicleConstraintSettings.

sRestoreFromBinaryState()

ConstraintSettings::ConstraintResult ConstraintSettings::sRestoreFromBinaryState ( StreamIn & inStream )

static

Creates a constraint of the correct type and restores its contents from the binary stream inStream.

Member Data Documentation

mConstraintPriority

uint32 ConstraintSettings::mConstraintPriority = 0

Priority of the constraint when solving. Higher numbers are more likely to be solved correctly. Note that if you want a deterministic simulation and you cannot guarantee the order in which constraints are added/removed, you can make the priority for all constraints unique to get a deterministic ordering.

mDrawConstraintSize

float ConstraintSettings::mDrawConstraintSize = 1.0f

Size of constraint when drawing it through the debug renderer.

mEnabled

bool ConstraintSettings::mEnabled = true

If this constraint is enabled initially. Use Constraint::SetEnabled to toggle after creation.

mNumPositionStepsOverride

uint ConstraintSettings::mNumPositionStepsOverride = 0

Used only when the constraint is active. Override for the number of solver position iterations to run, 0 means use the default in PhysicsSettings::mNumPositionSteps. The number of iterations to use is the max of all contacts and constraints in the island.

mNumVelocityStepsOverride

uint ConstraintSettings::mNumVelocityStepsOverride = 0

Used only when the constraint is active. Override for the number of solver velocity iterations to run, 0 means use the default in PhysicsSettings::mNumVelocitySteps. The number of iterations to use is the max of all contacts and constraints in the island.

mUserData

uint64 ConstraintSettings::mUserData = 0

User data value (can be used by application).

---

The documentation for this class was generated from the following files:

• Jolt/Physics/Constraints/Constraint.h
• Jolt/Physics/Constraints/Constraint.cpp
