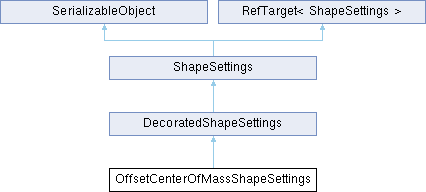

Inheritance diagram for OffsetCenterOfMassShapeSettings:

Public Member Functions
	OffsetCenterOfMassShapeSettings ()=default
	Constructor.
	OffsetCenterOfMassShapeSettings (Vec3Arg inOffset, const ShapeSettings *inShape)
	Construct with shape settings, can be serialized.
	OffsetCenterOfMassShapeSettings (Vec3Arg inOffset, const Shape *inShape)
	Variant that uses a concrete shape, which means this object cannot be serialized.
virtual ShapeResult	Create () const override
	Create a shape according to the settings specified by this object.
Public Member Functions inherited from DecoratedShapeSettings
	DecoratedShapeSettings ()=default
	Default constructor for deserialization.
	DecoratedShapeSettings (const ShapeSettings *inShape)
	Constructor that decorates another shape.
	DecoratedShapeSettings (const Shape *inShape)
Public Member Functions inherited from ShapeSettings
void	ClearCachedResult ()
Public Member Functions inherited from SerializableObject
virtual	~SerializableObject ()=default
	Destructor.
Public Member Functions inherited from RefTarget< ShapeSettings >
	RefTarget ()=default
	Constructor.
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const

Public Attributes
Vec3	mOffset
	Offset to be applied to the center of mass of the child shape.
Public Attributes inherited from DecoratedShapeSettings
RefConst< ShapeSettings >	mInnerShape
	Sub shape (either this or mShapePtr needs to be filled up).
RefConst< Shape >	mInnerShapePtr
	Sub shape (either this or mShape needs to be filled up).
Public Attributes inherited from ShapeSettings
uint64	mUserData = 0
	User data (to be used freely by the application).

Additional Inherited Members
Public Types inherited from ShapeSettings
using	ShapeResult = Result<Ref<Shape>>
Static Public Member Functions inherited from RefTarget< ShapeSettings >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.
Protected Member Functions inherited from SerializableObject
	SerializableObject ()=default
	Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.
	SerializableObject (const SerializableObject &)=default
SerializableObject &	operator= (const SerializableObject &)=default
Protected Attributes inherited from ShapeSettings
ShapeResult	mCachedResult
Protected Attributes inherited from RefTarget< ShapeSettings >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< ShapeSettings >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

Class that constructs an OffsetCenterOfMassShape.

Constructor & Destructor Documentation

OffsetCenterOfMassShapeSettings::OffsetCenterOfMassShapeSettings ( )

default

Constructor.

OffsetCenterOfMassShapeSettings::OffsetCenterOfMassShapeSettings	(	Vec3Arg	inOffset,
		const ShapeSettings *	inShape )

inline

Construct with shape settings, can be serialized.

OffsetCenterOfMassShapeSettings::OffsetCenterOfMassShapeSettings	(	Vec3Arg	inOffset,
		const Shape *	inShape )

inline

Variant that uses a concrete shape, which means this object cannot be serialized.

ShapeSettings::ShapeResult OffsetCenterOfMassShapeSettings::Create ( ) const

overridevirtual

Create a shape according to the settings specified by this object.

Vec3 OffsetCenterOfMassShapeSettings::mOffset

Offset to be applied to the center of mass of the child shape.

The documentation for this class was generated from the following files:
