PhysicsMaterial Class Reference

#include <PhysicsMaterial.h>

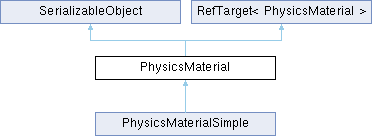

Inheritance diagram for PhysicsMaterial:

Public Types
using	PhysicsMaterialResult = Result<Ref<PhysicsMaterial>>

Public Member Functions
	PhysicsMaterial ()=default
	Constructor.
virtual	~PhysicsMaterial () override=default
virtual const char *	GetDebugName () const
virtual Color	GetDebugColor () const
virtual void	SaveBinaryState (StreamOut &inStream) const
	Saves the contents of the material in binary form to inStream.
Public Member Functions inherited from SerializableObject
virtual	~SerializableObject ()=default
	Destructor.
Public Member Functions inherited from RefTarget< PhysicsMaterial >
	RefTarget ()=default
	Constructor.
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const

Static Public Member Functions
static PhysicsMaterialResult	sRestoreFromBinaryState (StreamIn &inStream)
	Creates a PhysicsMaterial of the correct type and restores its contents from the binary stream inStream.
Static Public Member Functions inherited from RefTarget< PhysicsMaterial >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.

Static Public Attributes
static RefConst< PhysicsMaterial >	sDefault
	Default material that is used when a shape has no materials defined.

Protected Member Functions
	PhysicsMaterial (const PhysicsMaterial &)=default
	Don't allow copy constructing this base class, but allow derived classes to copy themselves.
PhysicsMaterial &	operator= (const PhysicsMaterial &)=default
virtual void	RestoreBinaryState (StreamIn &inStream)
	This function should not be called directly, it is used by sRestoreFromBinaryState.
Protected Member Functions inherited from SerializableObject
	SerializableObject ()=default
	Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.
	SerializableObject (const SerializableObject &)=default
SerializableObject &	operator= (const SerializableObject &)=default

Additional Inherited Members
Protected Attributes inherited from RefTarget< PhysicsMaterial >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< PhysicsMaterial >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

This structure describes the surface of (part of) a shape. You should inherit from it to define additional information that is interesting for the simulation. The 2 materials involved in a contact could be used to decide which sound or particle effects to play.

If you inherit from this material, don't forget to create a suitable default material in sDefault

Member Typedef Documentation

PhysicsMaterialResult

using PhysicsMaterial::PhysicsMaterialResult = Result<Ref<PhysicsMaterial>>

Constructor & Destructor Documentation

PhysicsMaterial() [1/2]

PhysicsMaterial::PhysicsMaterial ( )

default

Constructor.

~PhysicsMaterial()

virtual PhysicsMaterial::~PhysicsMaterial ( )

overridevirtualdefault

PhysicsMaterial() [2/2]

PhysicsMaterial::PhysicsMaterial ( const PhysicsMaterial & )

protecteddefault

Don't allow copy constructing this base class, but allow derived classes to copy themselves.

Member Function Documentation

GetDebugColor()

virtual Color PhysicsMaterial::GetDebugColor ( ) const

inlinevirtual

Reimplemented in PhysicsMaterialSimple.

GetDebugName()

virtual const char * PhysicsMaterial::GetDebugName ( ) const

inlinevirtual

Reimplemented in PhysicsMaterialSimple.

operator=()

PhysicsMaterial & PhysicsMaterial::operator= ( const PhysicsMaterial & )

protecteddefault

RestoreBinaryState()

void PhysicsMaterial::RestoreBinaryState ( StreamIn & inStream )

protectedvirtual

This function should not be called directly, it is used by sRestoreFromBinaryState.

Reimplemented in PhysicsMaterialSimple.

SaveBinaryState()

void PhysicsMaterial::SaveBinaryState ( StreamOut & inStream ) const

virtual

Saves the contents of the material in binary form to inStream.

Reimplemented in PhysicsMaterialSimple.

sRestoreFromBinaryState()

PhysicsMaterial::PhysicsMaterialResult PhysicsMaterial::sRestoreFromBinaryState ( StreamIn & inStream )

static

Creates a PhysicsMaterial of the correct type and restores its contents from the binary stream inStream.

Member Data Documentation

sDefault

JPH_NAMESPACE_BEGIN RefConst< PhysicsMaterial > PhysicsMaterial::sDefault

static

Default material that is used when a shape has no materials defined.

---

The documentation for this class was generated from the following files:

• Jolt/Physics/Collision/PhysicsMaterial.h
• Jolt/Physics/Collision/PhysicsMaterial.cpp
