TrackedVehicleControllerSettings Class Reference

#include <TrackedVehicleController.h>

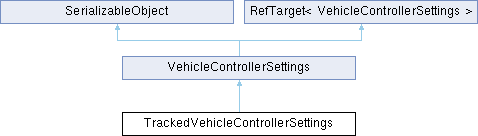

Inheritance diagram for TrackedVehicleControllerSettings:

Public Member Functions
	TrackedVehicleControllerSettings ()
virtual VehicleController *	ConstructController (VehicleConstraint &inConstraint) const override
	Create an instance of the vehicle controller class.
virtual void	SaveBinaryState (StreamOut &inStream) const override
	Saves the contents of the controller settings in binary form to inStream.
virtual void	RestoreBinaryState (StreamIn &inStream) override
	Restore the contents of the controller settings in binary form from inStream.
Public Member Functions inherited from SerializableObject
virtual	~SerializableObject ()=default
	Destructor.
Public Member Functions inherited from RefTarget< VehicleControllerSettings >
	RefTarget ()=default
	Constructor.
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const

Public Attributes
VehicleEngineSettings	mEngine
	The properties of the engine.
VehicleTransmissionSettings	mTransmission
	The properties of the transmission (aka gear box).
VehicleTrackSettings	mTracks [(int) ETrackSide::Num]
	List of tracks and their properties.

Additional Inherited Members
Static Public Member Functions inherited from RefTarget< VehicleControllerSettings >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.
Protected Member Functions inherited from SerializableObject
	SerializableObject ()=default
	Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.
	SerializableObject (const SerializableObject &)=default
SerializableObject &	operator= (const SerializableObject &)=default
Protected Attributes inherited from RefTarget< VehicleControllerSettings >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< VehicleControllerSettings >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

Settings of a vehicle with tank tracks

Default settings are based around what I could find about the M1 Abrams tank. Note to avoid issues with very heavy objects vs very light objects the mass of the tank should be a lot lower (say 10x) than that of a real tank. That means that the engine/brake torque is also 10x less.

Constructor & Destructor Documentation

TrackedVehicleControllerSettings()

TrackedVehicleControllerSettings::TrackedVehicleControllerSettings

(

)

Member Function Documentation

ConstructController()

VehicleController * TrackedVehicleControllerSettings::ConstructController ( VehicleConstraint & inConstraint ) const

overridevirtual

Create an instance of the vehicle controller class.

Implements VehicleControllerSettings.

RestoreBinaryState()

void TrackedVehicleControllerSettings::RestoreBinaryState ( StreamIn & inStream )

overridevirtual

Restore the contents of the controller settings in binary form from inStream.

Implements VehicleControllerSettings.

SaveBinaryState()

void TrackedVehicleControllerSettings::SaveBinaryState ( StreamOut & inStream ) const

overridevirtual

Saves the contents of the controller settings in binary form to inStream.

Implements VehicleControllerSettings.

Member Data Documentation

mEngine

VehicleEngineSettings TrackedVehicleControllerSettings::mEngine

The properties of the engine.

mTracks

VehicleTrackSettings TrackedVehicleControllerSettings::mTracks[(int) ETrackSide::Num]

List of tracks and their properties.

mTransmission

VehicleTransmissionSettings TrackedVehicleControllerSettings::mTransmission

The properties of the transmission (aka gear box).

---

The documentation for this class was generated from the following files:

• Jolt/Physics/Vehicle/TrackedVehicleController.h
• Jolt/Physics/Vehicle/TrackedVehicleController.cpp
