CapsuleShapeSettings Class Reference

Class that constructs a CapsuleShape. More...

#include <CapsuleShape.h>

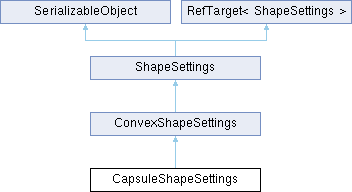

Inheritance diagram for CapsuleShapeSettings:

Public Member Functions
	CapsuleShapeSettings ()=default
	Default constructor for deserialization.
	CapsuleShapeSettings (float inHalfHeightOfCylinder, float inRadius, const PhysicsMaterial *inMaterial=nullptr)
	Create a capsule centered around the origin with one sphere cap at (0, -inHalfHeightOfCylinder, 0) and the other at (0, inHalfHeightOfCylinder, 0).
bool	IsValid () const
	Check if this is a valid capsule shape.
bool	IsSphere () const
	Checks if the settings of this capsule make this shape a sphere.
virtual ShapeResult	Create () const override
	Create a shape according to the settings specified by this object.
Public Member Functions inherited from ConvexShapeSettings
	ConvexShapeSettings ()=default
	Constructor.
	ConvexShapeSettings (const PhysicsMaterial *inMaterial)
void	SetDensity (float inDensity)
	Set the density of the object in kg / m^3.
Public Member Functions inherited from ShapeSettings
void	ClearCachedResult ()
Public Member Functions inherited from SerializableObject
virtual	~SerializableObject ()=default
	Destructor.
Public Member Functions inherited from RefTarget< ShapeSettings >
	RefTarget ()=default
	Constructor.
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const

Public Attributes
float	mRadius = 0.0f
float	mHalfHeightOfCylinder = 0.0f
Public Attributes inherited from ConvexShapeSettings
RefConst< PhysicsMaterial >	mMaterial
	Material assigned to this shape.
float	mDensity = 1000.0f
	Uniform density of the interior of the convex object (kg / m^3).
Public Attributes inherited from ShapeSettings
uint64	mUserData = 0
	User data (to be used freely by the application).

Additional Inherited Members
Public Types inherited from ShapeSettings
using	ShapeResult = Result<Ref<Shape>>
Static Public Member Functions inherited from RefTarget< ShapeSettings >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.
Protected Member Functions inherited from SerializableObject
	SerializableObject ()=default
	Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.
	SerializableObject (const SerializableObject &)=default
SerializableObject &	operator= (const SerializableObject &)=default
Protected Attributes inherited from ShapeSettings
ShapeResult	mCachedResult
Protected Attributes inherited from RefTarget< ShapeSettings >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< ShapeSettings >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

Class that constructs a CapsuleShape.

Constructor & Destructor Documentation

CapsuleShapeSettings() [1/2]

CapsuleShapeSettings::CapsuleShapeSettings ( )

default

Default constructor for deserialization.

CapsuleShapeSettings() [2/2]

CapsuleShapeSettings::CapsuleShapeSettings ( float inHalfHeightOfCylinder, float inRadius, const PhysicsMaterial * inMaterial = nullptr )

inline

Create a capsule centered around the origin with one sphere cap at (0, -inHalfHeightOfCylinder, 0) and the other at (0, inHalfHeightOfCylinder, 0).

Member Function Documentation

Create()

ShapeSettings::ShapeResult CapsuleShapeSettings::Create ( ) const

overridevirtual

Create a shape according to the settings specified by this object.

Implements ShapeSettings.

IsSphere()

bool CapsuleShapeSettings::IsSphere ( ) const

inline

Checks if the settings of this capsule make this shape a sphere.

IsValid()

bool CapsuleShapeSettings::IsValid ( ) const

inline

Check if this is a valid capsule shape.

Member Data Documentation

mHalfHeightOfCylinder

float CapsuleShapeSettings::mHalfHeightOfCylinder = 0.0f

mRadius

float CapsuleShapeSettings::mRadius = 0.0f

---

The documentation for this class was generated from the following files:

• Jolt/Physics/Collision/Shape/CapsuleShape.h
• Jolt/Physics/Collision/Shape/CapsuleShape.cpp
