Class that constructs a TaperedCylinderShape. More...

#include <TaperedCylinderShape.h>

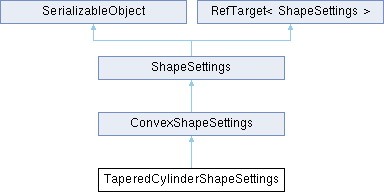

Inheritance diagram for TaperedCylinderShapeSettings:

Public Member Functions
	TaperedCylinderShapeSettings ()=default
	Default constructor for deserialization.
	TaperedCylinderShapeSettings (float inHalfHeightOfTaperedCylinder, float inTopRadius, float inBottomRadius, float inConvexRadius=cDefaultConvexRadius, const PhysicsMaterial *inMaterial=nullptr)
	Create a tapered cylinder centered around the origin with bottom at (0, -inHalfHeightOfTaperedCylinder, 0) with radius inBottomRadius and top at (0, inHalfHeightOfTaperedCylinder, 0) with radius inTopRadius.
virtual ShapeResult	Create () const override
	Create a shape according to the settings specified by this object.
Public Member Functions inherited from ConvexShapeSettings
	ConvexShapeSettings ()=default
	Constructor.
	ConvexShapeSettings (const PhysicsMaterial *inMaterial)
void	SetDensity (float inDensity)
	Set the density of the object in kg / m^3.
Public Member Functions inherited from ShapeSettings
void	ClearCachedResult ()
Public Member Functions inherited from SerializableObject
virtual	~SerializableObject ()=default
	Destructor.
Public Member Functions inherited from RefTarget< ShapeSettings >
	RefTarget ()=default
	Constructor.
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const

Public Attributes
float	mHalfHeight = 0.0f
float	mTopRadius = 0.0f
float	mBottomRadius = 0.0f
float	mConvexRadius = 0.0f
Public Attributes inherited from ConvexShapeSettings
RefConst< PhysicsMaterial >	mMaterial
	Material assigned to this shape.
float	mDensity = 1000.0f
	Uniform density of the interior of the convex object (kg / m^3).
Public Attributes inherited from ShapeSettings
uint64	mUserData = 0
	User data (to be used freely by the application).

Additional Inherited Members
Public Types inherited from ShapeSettings
using	ShapeResult = Result<Ref<Shape>>
Static Public Member Functions inherited from RefTarget< ShapeSettings >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.
Protected Member Functions inherited from SerializableObject
	SerializableObject ()=default
	Don't allow (copy) constructing this base class, but allow derived classes to (copy) construct themselves.
	SerializableObject (const SerializableObject &)=default
SerializableObject &	operator= (const SerializableObject &)=default
Protected Attributes inherited from ShapeSettings
ShapeResult	mCachedResult
Protected Attributes inherited from RefTarget< ShapeSettings >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< ShapeSettings >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

Class that constructs a TaperedCylinderShape.

Constructor & Destructor Documentation

◆ TaperedCylinderShapeSettings() [1/2]

TaperedCylinderShapeSettings::TaperedCylinderShapeSettings ( )

default

Default constructor for deserialization.

◆ TaperedCylinderShapeSettings() [2/2]

TaperedCylinderShapeSettings::TaperedCylinderShapeSettings	(	float	inHalfHeightOfTaperedCylinder,
		float	inTopRadius,
		float	inBottomRadius,
		float	inConvexRadius = cDefaultConvexRadius,
		const PhysicsMaterial *	inMaterial = nullptr )

Create a tapered cylinder centered around the origin with bottom at (0, -inHalfHeightOfTaperedCylinder, 0) with radius inBottomRadius and top at (0, inHalfHeightOfTaperedCylinder, 0) with radius inTopRadius.

Member Function Documentation

◆ Create()

ShapeSettings::ShapeResult TaperedCylinderShapeSettings::Create ( ) const

overridevirtual

Create a shape according to the settings specified by this object.

Implements ShapeSettings.

Member Data Documentation

◆ mBottomRadius

float TaperedCylinderShapeSettings::mBottomRadius = 0.0f

◆ mConvexRadius

float TaperedCylinderShapeSettings::mConvexRadius = 0.0f

◆ mHalfHeight

float TaperedCylinderShapeSettings::mHalfHeight = 0.0f

◆ mTopRadius

float TaperedCylinderShapeSettings::mTopRadius = 0.0f

The documentation for this class was generated from the following files:

Jolt/Physics/Collision/Shape/TaperedCylinderShape.h
Jolt/Physics/Collision/Shape/TaperedCylinderShape.cpp
