ComputeQueueCPU Class Reference

A command queue for the CPU compute system. More...

#include <ComputeQueueCPU.h>

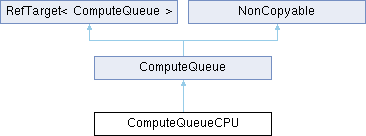

Inheritance diagram for ComputeQueueCPU:

Public Member Functions
virtual JPH_OVERRIDE_NEW_DELETE	~ComputeQueueCPU () override
	Destructor.
virtual void	SetShader (const ComputeShader *inShader) override
virtual void	SetConstantBuffer (const char *inName, const ComputeBuffer *inBuffer) override
virtual void	SetBuffer (const char *inName, const ComputeBuffer *inBuffer) override
virtual void	SetRWBuffer (const char *inName, ComputeBuffer *inBuffer, EBarrier inBarrier=EBarrier::Yes) override
virtual void	ScheduleReadback (ComputeBuffer *inDst, const ComputeBuffer *inSrc) override
virtual void	Dispatch (uint inThreadGroupsX, uint inThreadGroupsY, uint inThreadGroupsZ) override
	Dispatch a compute shader with the specified number of thread groups.
virtual void	Execute () override
virtual void	Wait () override
Public Member Functions inherited from ComputeQueue
virtual JPH_OVERRIDE_NEW_DELETE	~ComputeQueue ()=default
	Destructor.
void	ExecuteAndWait ()
Public Member Functions inherited from RefTarget< ComputeQueue >
	RefTarget ()=default
	Constructor.
	RefTarget (const RefTarget &)
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const
Public Member Functions inherited from NonCopyable
	NonCopyable ()=default
	NonCopyable (const NonCopyable &)=delete
void	operator= (const NonCopyable &)=delete

Additional Inherited Members
Public Types inherited from ComputeQueue
enum class	EBarrier { Yes , No }
	If a barrier should be placed before accessing the buffer. More...
Static Public Member Functions inherited from RefTarget< ComputeQueue >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.
Protected Attributes inherited from RefTarget< ComputeQueue >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< ComputeQueue >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

A command queue for the CPU compute system.

Constructor & Destructor Documentation

~ComputeQueueCPU()

JPH_NAMESPACE_BEGIN ComputeQueueCPU::~ComputeQueueCPU ( )

overridevirtual

Destructor.

Member Function Documentation

Dispatch()

void ComputeQueueCPU::Dispatch ( uint inThreadGroupsX, uint inThreadGroupsY, uint inThreadGroupsZ )

overridevirtual

Dispatch a compute shader with the specified number of thread groups.

Implements ComputeQueue.

Execute()

void ComputeQueueCPU::Execute ( )

overridevirtual

Execute accumulated command list. No more commands can be added until Wait is called.

Implements ComputeQueue.

ScheduleReadback()

void ComputeQueueCPU::ScheduleReadback ( ComputeBuffer * inDst, const ComputeBuffer * inSrc )

overridevirtual

Schedule buffer to be copied from GPU to CPU. A reference to the buffers is added to make sure they stay alive until execution finishes.

Implements ComputeQueue.

SetBuffer()

void ComputeQueueCPU::SetBuffer ( const char * inName, const ComputeBuffer * inBuffer )

overridevirtual

Bind a read only buffer to the shader. Note that the contents of the buffer cannot be modified on CPU until execution finishes (only relevant for buffers of type UploadBuffer). A reference to the buffer is added to make sure it stays alive until execution finishes.

Parameters

inName	Name of the buffer as specified in the shader.
inBuffer	The buffer to bind.

Implements ComputeQueue.

SetConstantBuffer()

void ComputeQueueCPU::SetConstantBuffer ( const char * inName, const ComputeBuffer * inBuffer )

overridevirtual

Bind a constant buffer to the shader. Note that the contents of the buffer cannot be modified until execution finishes. A reference to the buffer is added to make sure it stays alive until execution finishes.

Parameters

inName	Name of the buffer as specified in the shader.
inBuffer	The buffer to bind.

Implements ComputeQueue.

SetRWBuffer()

void ComputeQueueCPU::SetRWBuffer ( const char * inName, ComputeBuffer * inBuffer, EBarrier inBarrier = EBarrier::Yes )

overridevirtual

Bind a read/write buffer to the shader. A reference to the buffer is added to make sure it stays alive until execution finishes.

Parameters

inName	Name of the buffer as specified in the shader.
inBuffer	The buffer to bind.
inBarrier	If set to Yes, a barrier will be placed before accessing the buffer to ensure all previous writes to the buffer are visible.

Implements ComputeQueue.

SetShader()

void ComputeQueueCPU::SetShader ( const ComputeShader * inShader )

overridevirtual

Activate a shader. Shader must be set first before buffers can be bound. After every Dispatch call, the shader must be set again and all buffers must be bound again.

Implements ComputeQueue.

Wait()

void ComputeQueueCPU::Wait ( )

overridevirtual

After executing, this waits until execution is done. This also makes sure that any readback operations have completed and the data is available on CPU.

Implements ComputeQueue.

---

The documentation for this class was generated from the following files:

• Jolt/Compute/CPU/ComputeQueueCPU.h
• Jolt/Compute/CPU/ComputeQueueCPU.cpp
