ComputeSystem Class Reference

Interface to run a workload on the GPU. More...

#include <ComputeSystem.h>

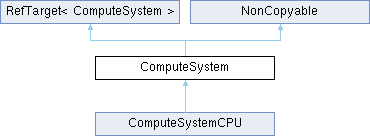

Inheritance diagram for ComputeSystem:

Public Types
using	ShaderLoader = std::function<bool(const char *inName, Array<uint8> &outData, String &outError)>
	Callback used when loading shaders.

Public Member Functions
virtual JPH_OVERRIDE_NEW_DELETE	~ComputeSystem ()=default
	Destructor.
virtual ComputeShaderResult	CreateComputeShader (const char *inName, uint32 inGroupSizeX, uint32 inGroupSizeY=1, uint32 inGroupSizeZ=1)=0
	Compile a compute shader.
virtual ComputeBufferResult	CreateComputeBuffer (ComputeBuffer::EType inType, uint64 inSize, uint inStride, const void *inData=nullptr)=0
	Create a buffer for use with a compute shader.
virtual ComputeQueueResult	CreateComputeQueue ()=0
	Create a queue for executing compute shaders.
Public Member Functions inherited from RefTarget< ComputeSystem >
	RefTarget ()=default
	Constructor.
	RefTarget (const RefTarget &)
	~RefTarget ()
	assert no one is referencing us
void	SetEmbedded () const
RefTarget &	operator= (const RefTarget &)
	Assignment operator.
uint32	GetRefCount () const
	Get current refcount of this object.
void	AddRef () const
	Add or release a reference to this object.
void	Release () const
Public Member Functions inherited from NonCopyable
	NonCopyable ()=default
	NonCopyable (const NonCopyable &)=delete
void	operator= (const NonCopyable &)=delete

Public Attributes
ShaderLoader	mShaderLoader = [](const char *, Array<uint8> &, String &outError) { JPH_ASSERT(false, "Override this function"); outError = "Not implemented"; return false; }

Additional Inherited Members
Static Public Member Functions inherited from RefTarget< ComputeSystem >
static int	sInternalGetRefCountOffset ()
	INTERNAL HELPER FUNCTION USED BY SERIALIZATION.
Protected Attributes inherited from RefTarget< ComputeSystem >
atomic< uint32 >	mRefCount
	Current reference count.
Static Protected Attributes inherited from RefTarget< ComputeSystem >
static constexpr uint32	cEmbedded
	A large value that gets added to the refcount to mark the object as embedded.

Detailed Description

Interface to run a workload on the GPU.

Member Typedef Documentation

ShaderLoader

using ComputeSystem::ShaderLoader = std::function<bool(const char *inName, Array<uint8> &outData, String &outError)>

Callback used when loading shaders.

Constructor & Destructor Documentation

~ComputeSystem()

virtual JPH_OVERRIDE_NEW_DELETE ComputeSystem::~ComputeSystem ( )

virtualdefault

Destructor.

Member Function Documentation

CreateComputeBuffer()

virtual ComputeBufferResult ComputeSystem::CreateComputeBuffer ( ComputeBuffer::EType inType, uint64 inSize, uint inStride, const void * inData = nullptr )

pure virtual

Create a buffer for use with a compute shader.

Implemented in ComputeSystemCPU.

CreateComputeQueue()

virtual ComputeQueueResult ComputeSystem::CreateComputeQueue ( )

pure virtual

Create a queue for executing compute shaders.

Implemented in ComputeSystemCPU.

CreateComputeShader()

virtual ComputeShaderResult ComputeSystem::CreateComputeShader ( const char * inName, uint32 inGroupSizeX, uint32 inGroupSizeY = 1, uint32 inGroupSizeZ = 1 )

pure virtual

Compile a compute shader.

Implemented in ComputeSystemCPU.

Member Data Documentation

mShaderLoader

ShaderLoader ComputeSystem::mShaderLoader = [](const char *, Array<uint8> &, String &outError) { JPH_ASSERT(false, "Override this function"); outError = "Not implemented"; return false; }

---

The documentation for this class was generated from the following file:

• Jolt/Compute/ComputeSystem.h
